SFX Continuous CW Fiber Laser Lens
by SFX Laser
SKU LC-Lens-1000
Original price
$305.00
-
Original price
$335.00
Original price
$305.00
$305.00
-
$335.00
Current price
$305.00

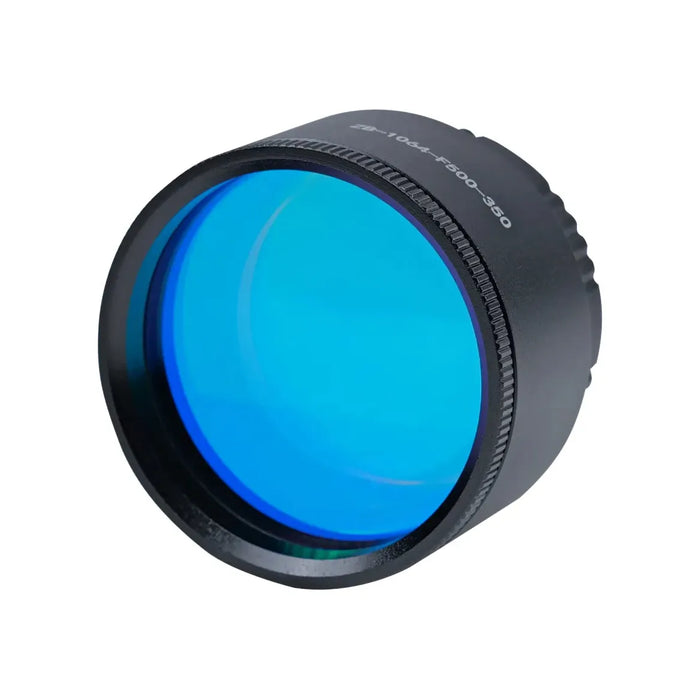

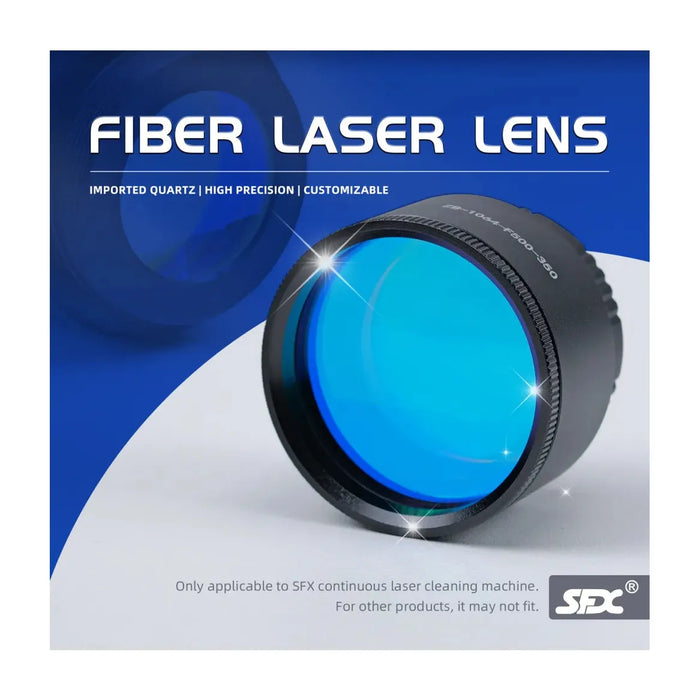

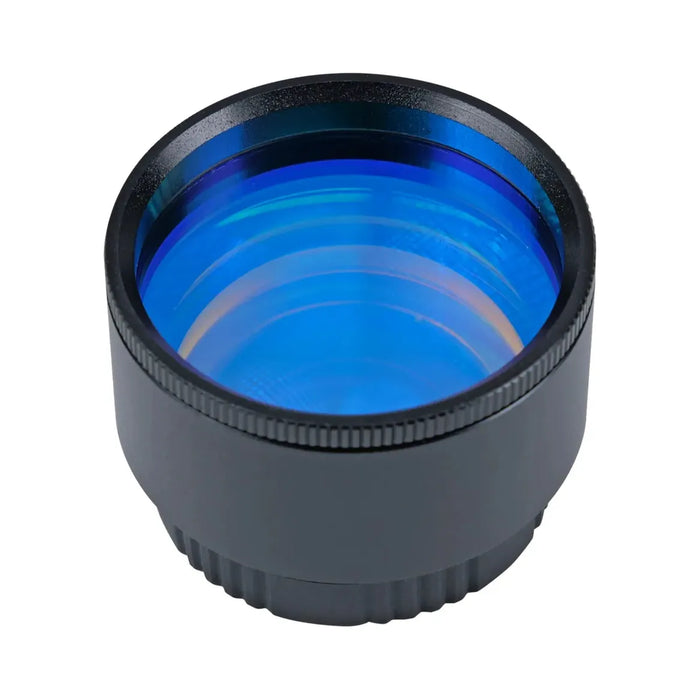

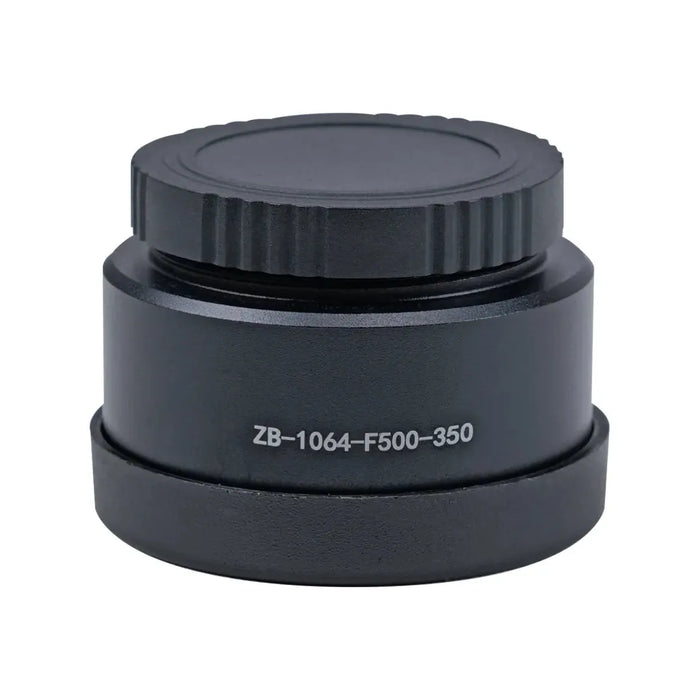

High-precision fiber laser lens for SFX continuous laser cleaning machines.
Description
Features
- High-precision fiber laser lens for SFX continuous laser cleaning machines
- High precision quartz construction with excellent F*θ linearity and minimal distortion.
- 1064nm wavelength with a 500mm effective focal length
- 300x300mm scanning range
- Supports a maximum incident light spot of 8mm
- High inner roundness and uniformity for precise laser focus

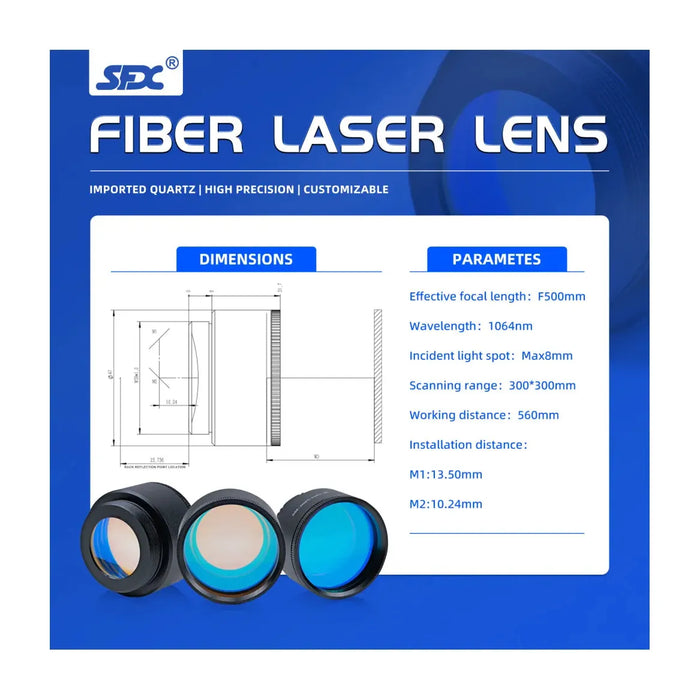

Specifications
| Effective focal length | F500mm |
| Wavelength | 1064nm |
| Incident light spot | Max. 8mm |
| Scanning range | 300*300mm |
| Working distance | 560mm |
| Installation distance | M1:13.5mm M2:10.24mm |
