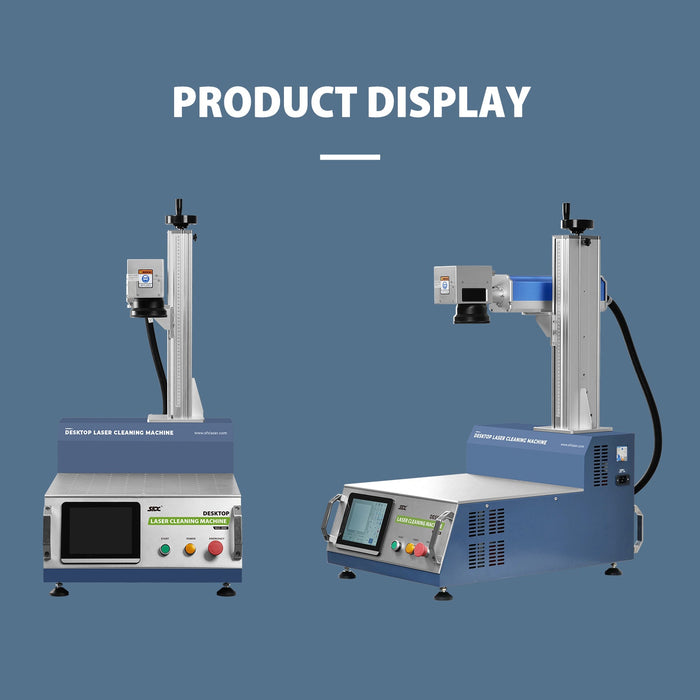

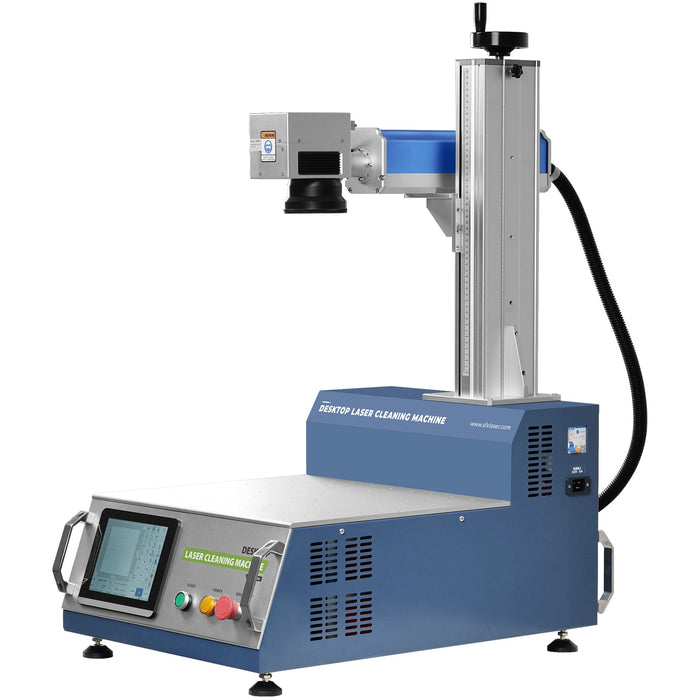

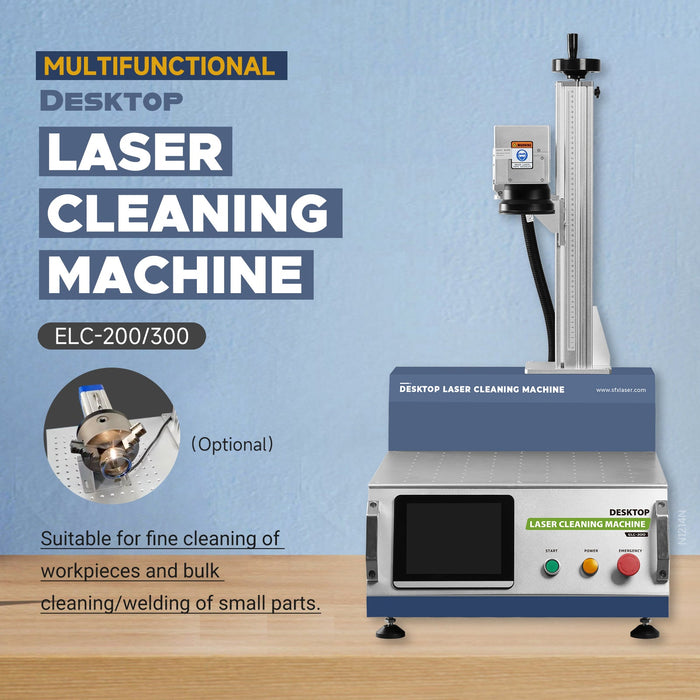

SFX 200W/300W Desktop Laser Cleaning Machine

SKU ELC-200
Original price $15,399.00 - Original price $17,599.00
Original price
$15,399.00
$15,399.00 - $17,599.00
Current price $15,399.00
  • Precision laser cleaning and welding in a compact desktop format
  • Perfect for fine, bulk cleaning of small parts.
  • Batch welding stainless steel plate, aluminum and other metals.
  • Adjustable height up to 17.7in., scanning area 11.8*11.8in.

Description

Features

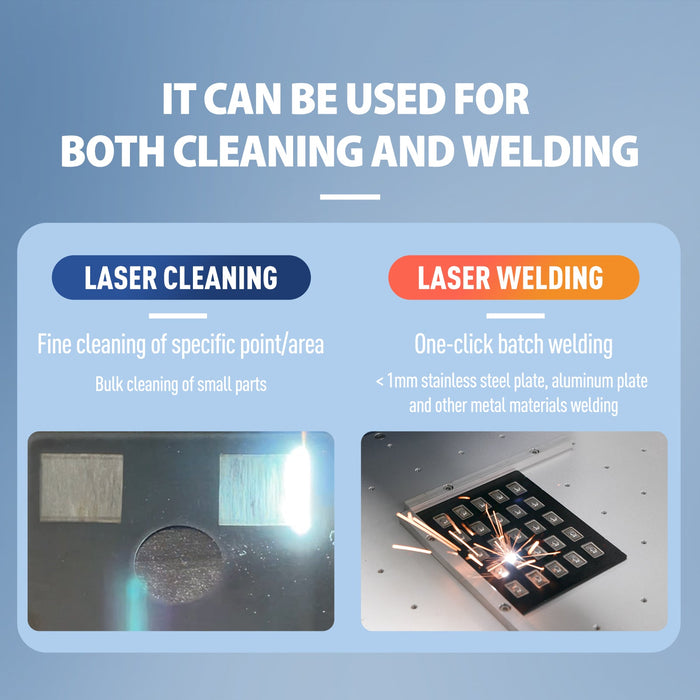

  • Dual functionality
    • Laser cleaning: Fine cleaning of specific points/area. Bulk cleaning of small parts.
    • Laser Welding: One-click batch welding of < 1mm stainless steel plates, aluminum plates and other metal materials.

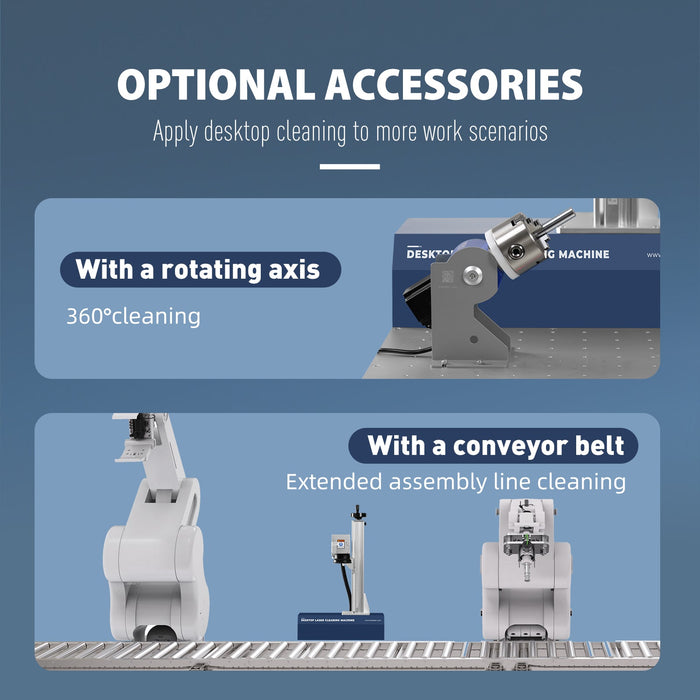

  • Optional Accessories
    • Rotating axis for 360° cleaning
    • Conveyor belt for extended assembly line cleaning.

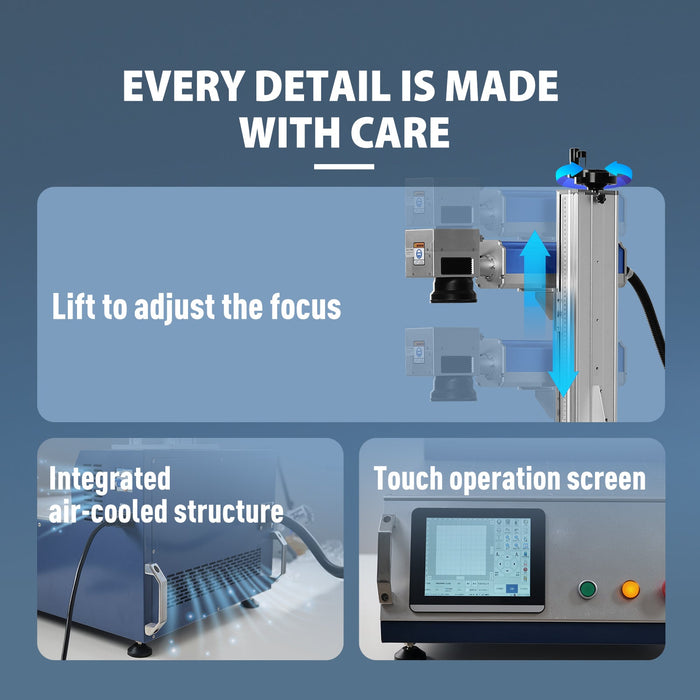

  • Adjustable height (up to 17.7in.) with a scanning area of 11.8*11.8in.
  • Built-in air cooling for extended operation.
  • Touch screen control with simple, user-friendly interface.
  • Reliable and rigorously tested to withstand high temperatures, vibration, fatigue, high humidity.

Applications

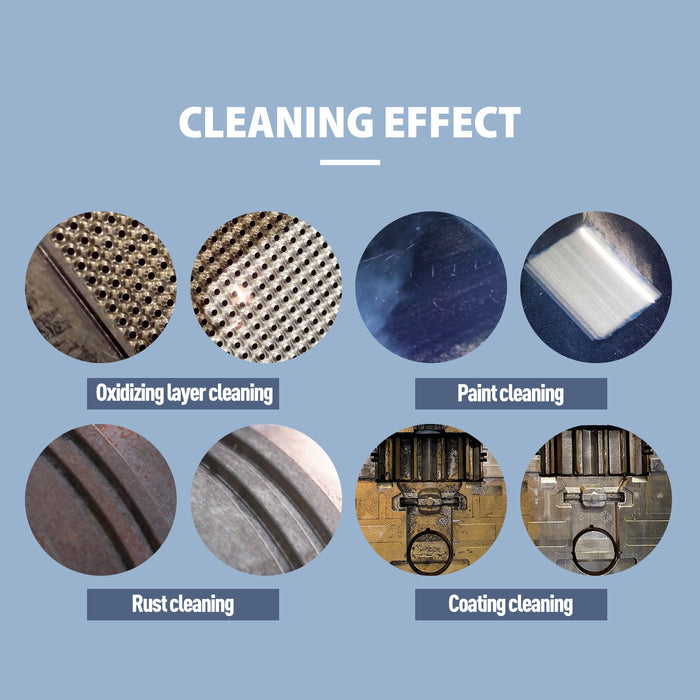

  • Precision cleaning of small workpieces requiring rust, oil, or paint removal
  • Laser welding for thin metal plates (<1mm) like stainless steel and aluminum
  • Perfect for industrial production lines, aerospace components, automotive parts, and fine metal fabrication.

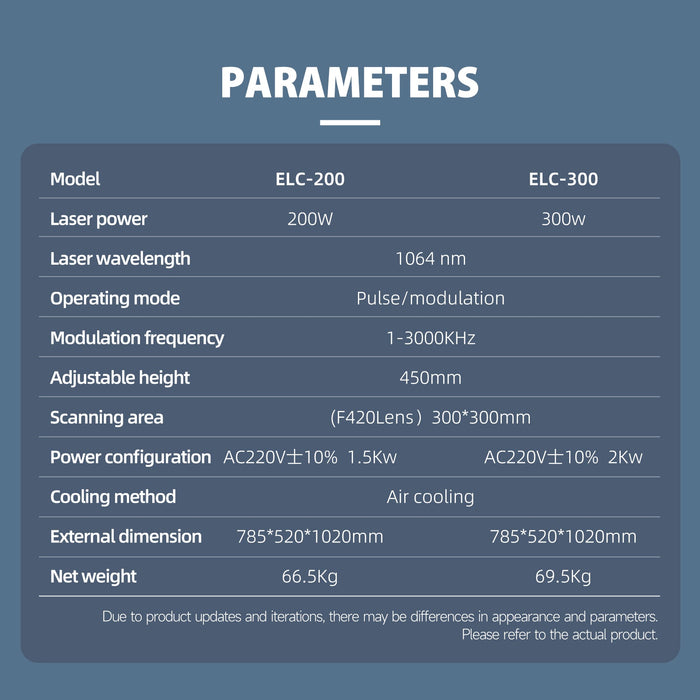

Specifications

Model ELC-200 ELC-300
Laser Power 200W 300W
Laser Wavelength 1064nm
Operating Mode Pulse/Modulation
Modulation Frequency 1-3000KHz
Adjustable Height 450mm
Scanning Area (F420 Lens) 300*300mm
Power Configuration AC220V±10% 1.5KW 2KW
Cooling Method Air Cooling
External Dimension 785*520*1020mm
Net Weight 66.5kg 69.5kg
Power: 200W
