300W/500W/1000W Pulse 2D Laser Cleaning Rust Paint Removal Machine
by Lasers Only
SKU CL300JPT-PLC2D-ZBTK
Original price
$12,799.00
-
Original price
$39,899.00
Original price
$12,799.00
$12,799.00
-
$39,899.00
Current price
$12,799.00
- Fast, dual-axis galvo with a laser beam width up to 170 by 170 mm
- 8 customizable 2D cleaning modes including line, rectangle, circle, and sine patterns
- Pulse laser preserves base materials while cleaning rust, paint, oil, oxide films, welding scale, carbon deposits, etc.
- Non-contact "sander": No dust or chemicals like traditional sandblasting.
Description

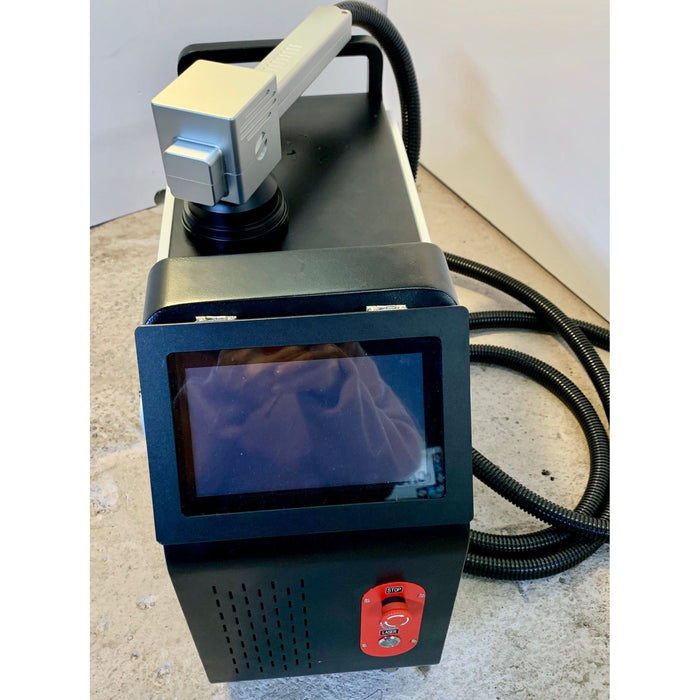

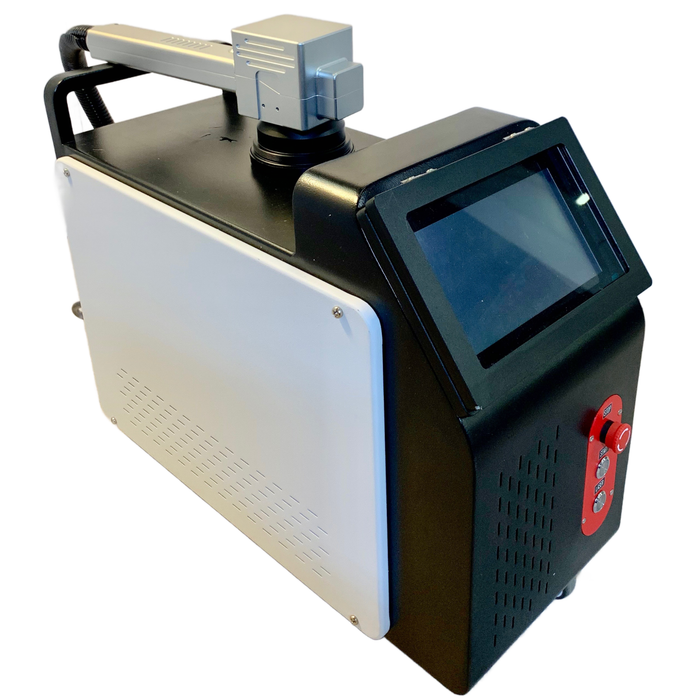

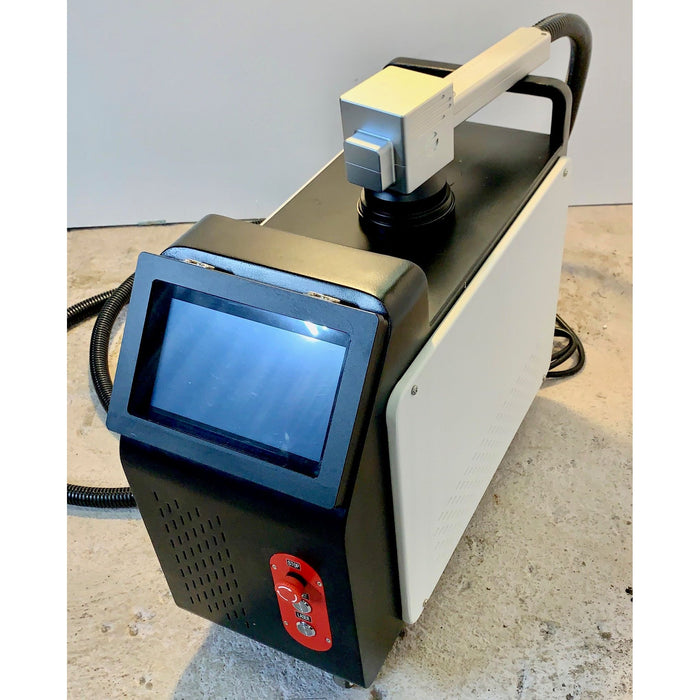

The Pulsed 2D Laser Cleaning Machine is a high-performance, non-contact cleaning solution designed for industrial rust removal, paint stripping, oxide film removal, and surface restoration. Available in 300W, 500W, and 1000W options, this machine integrates dual-axis galvo scanning and 8 customizable 2D cleaning modes for unparalleled precision and efficiency. Pulsed laser technology ensures thorough cleaning while preventing heat damage and material damage, making it ideal for delicate metal surfaces, adhesives, galvanized materials, and even stone or plaster.
Features
- Advanced Pulsed Laser Technology – MOPA fiber laser with adjustable pulse width and frequency for targeted contaminant removal
- High Cleaning Efficiency – Cleans up to 30,000 mm/s with adjustable accuracy of 0.86-86.11 ft²/min (0.08–8 m²/min), suitable for both fine-detail and heavy-duty applications
- Robust ZBTK Galvanometer – Designed for high-power lasers, ensuring stability, lens protection, and precision beam width up to 170 x 170 mm

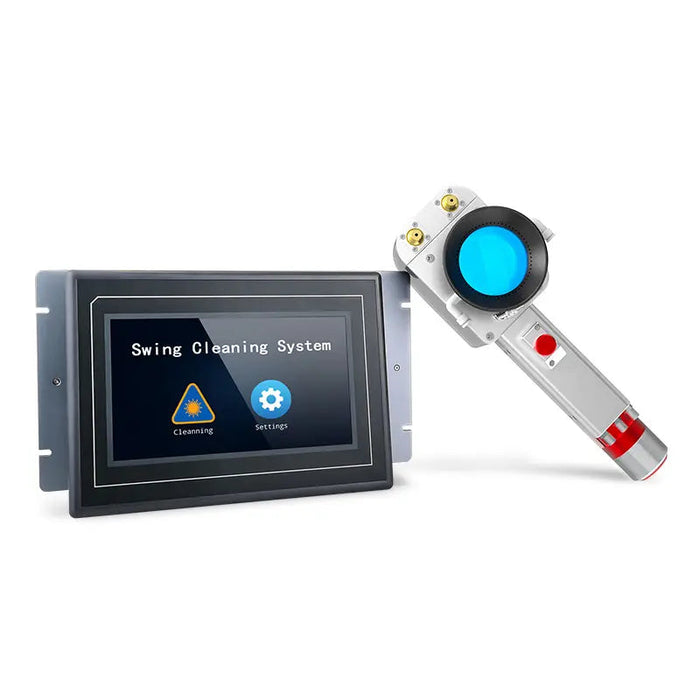

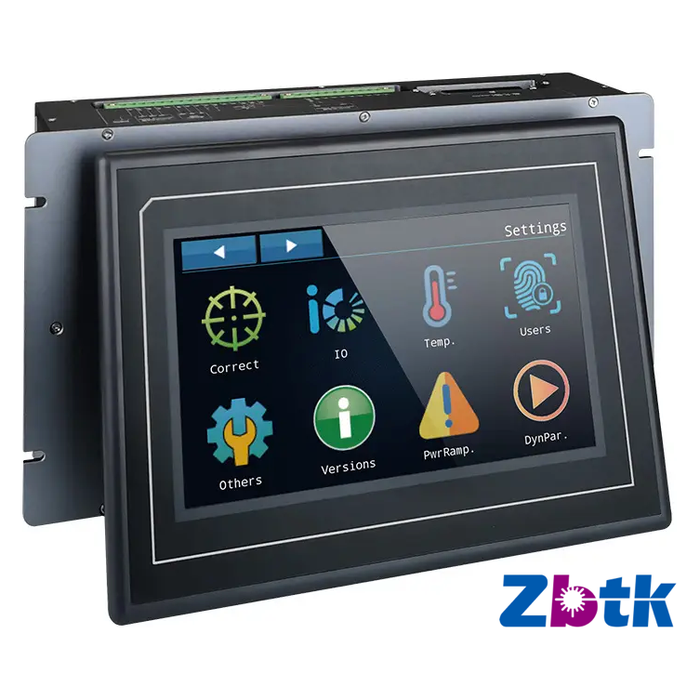

- Smart Control System – 10 safety alarms, multi-language support, and an intuitive interface for easy operation
- Durable & Ergonomic Design – Lightweight handheld laser gun (<1.3 kg) with built-in air-circuit lens protection and cooling system for long-term industrial use
Applications
- Rust & oxide removal for metal parts and machinery
- Paint & coating stripping
- Welding pre-treatment & post-cleaning
- Oil & stain removal – cleans oil, grease, and other surface contaminants
- Surface restoration across a wide range of industries, e.g. aerospace, automotive, shipbuilding, and manufacturing.
- Can be used on adhesive and galvanized materials and products made of plaster and stone.
Product Specifications
| Type | CL300JPT-PLC2D-ZBTK / CL500JPT-PLC2D-ZBTK / CL1000JPT-PLC2D-ZBTK |
| Laser source | Pulsed |
| Laser Power | 300W / 500W / 1000W |
| Fiber cable | 33 feet |
| Wavelength | 1064nm |
| Clean speed | 0.86-86.11 ft²/min (0.08-8 m²/min) |
| Beam width | 170mm x 170mm |
| Scan speed | 0-30,000mm/s |
| Cooling | Air Cooling/Water Cooling/Water Cooling |
| Voltage | Single Phase 220V |
Laser Specifications
JPT laser sources:
- 300W: YDFLP-CL-300-13-A
- 500W: YDFLP-CL-500-15-W
- 1000W: YDFLP-CL-1000-15-W
| Parameter | 300W / 500W / 1000W |
|---|---|
| M2 | < 14 / 3.7 / 3.7 |
| Armored Cable Length (m) | 5 / 10 / 10 |
| Nominal Average Output Power (W) | > 300 / 500 / 1000 |
| Max Pulse Energy (mJ) | 13 / 15 / 15 |
| Pulse Repetition Rate Range (kHz) | 1 - 1000 |
| Pulse Duration (ns) | 80 - 500 |
| Power Stability (%) | < 5 |
| Cooling Method | Air Cooled / Water Cooled / Water Cooled |
| Supply Voltage (VAC) | 220 |
| Max Power Consumption (W) | < 1500 / 2000 / 4000 |
| Environmental Supply Current (A) | > 63 / 10 / 20 |
| Anti-high Reflection | Yes |
| Emission Wavelength (nm) | 1064 |
| Emission Bandwidth@3dB (nm) | < 15 |
| Polarization | Random / Any / Any |
| Output Beam Diameter (mm) | 6.5 ± 1.0 |
| Output Power Tuning Range (%) | 0 - 100 |
| Operation Temperature (℃) | 0 - 40 |
| Storage Temperature (℃) | 10 - 60 |
| N.W (KG) | 65 |
| Size (L×W×H) (mm) | 558 × 378.5 × 425 |

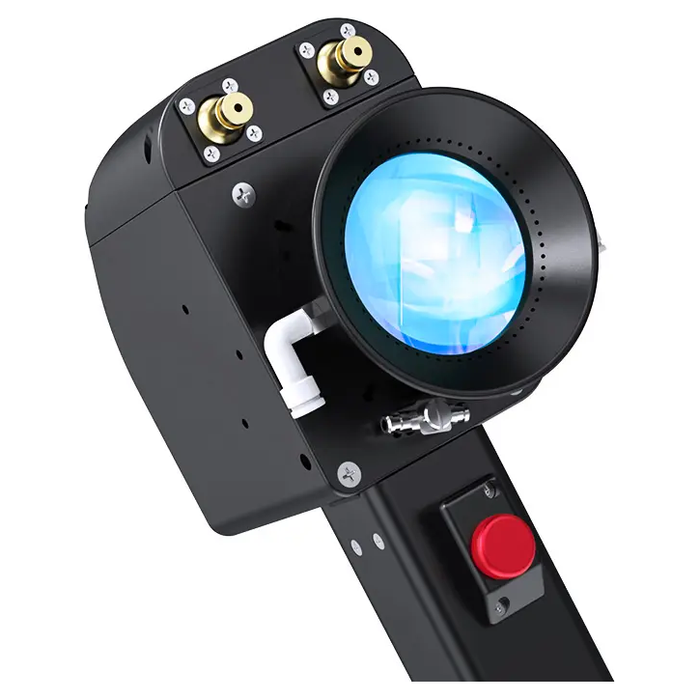

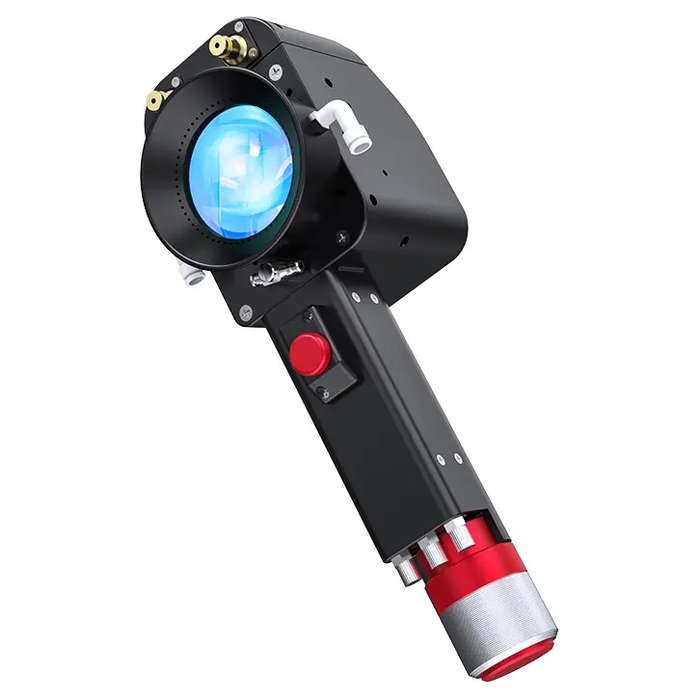

Galvanometer, Laser Gun
| Manufacturer | ZBTK Tech Co |
| Model | DHCP300 / DHCP500 / DHCP1000 |
| Laser Interface | QBH/QCS (17/20/24) |
| Cleaning Width | < 180 mm / 150 / 150 |
| Cleaning Length | < 150 mm |
| Cleaning Accuracy | < 1 µm |
| Cleaning Speed | < 30,000 mm/s |
| Cleaning Mode | Line, Rectangle, Circle, Ellipse, Sine |
| Laser Power | < 300 W/Pulse / 500 W/Pulse / 1000 W/Pulse |
| Protection Temp Zone Setting | 1 |
| Cooling Method | Air Cooling / Water Cooled / Water Cooled |
| Lens Protection Air Circuit | Yes |
| Laser Wavelength | 1050 - 1090 nm |
| Power Supply | ±15V / 3A |
| Power Requirements | 15VDC 5A |
| Operation Temperature | -15 ± 65 ℃ |
| Gun Weight | 1330 g |
| Dimensions (L×W×H) (mm) | 236 × 91 × 108 |
