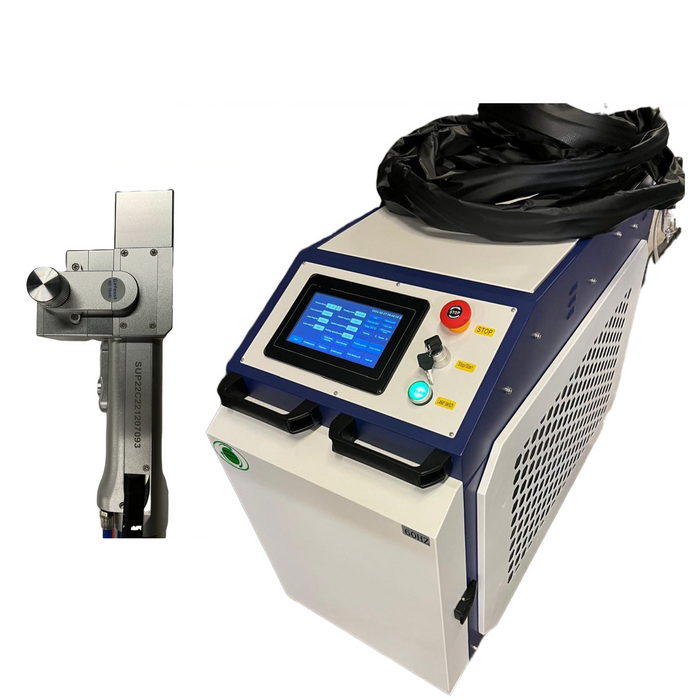

1500W/2000W/3000W Fiber Laser Cleaning Rust Paint Removal Machine
by Lasers Only
SKU CW1500-FLC-SUP22C
Original price
$8,699.00
-
Original price
$14,899.00
Original price
$8,699.00
$8,699.00
-
$14,899.00
Current price
$8,699.00
- High power continuous (CW) SUP fiber laser for effective rust and paint removal on a wide range of metal & non-metal materials.
- Non-contact cleaning preserves the integrity of the substrate surface
- Large laser beam width - can be set up to 300 mm for fast cleaning
- No chemicals and dust like traditional sandblasting
- User-friendly interface for easy operation
- High power continuous (CW) SUP fiber laser for effective rust and paint removal on a wide range of metal & non-metal materials.
- Non-contact cleaning preserves the integrity of the substrate surface
- Large laser beam width - can be set up to 300 mm for fast cleaning
- No chemicals and dust like traditional sandblasting
- User-friendly interface for easy operation
Description
Features
-
Excellent Results. This laser cleaning machine uses a SUP controller and handheld scanner technology for wide laser beams and outstanding cleaning results.
-
User-Friendly. Quick setup and easy operation for both experienced and novice technicians.
-

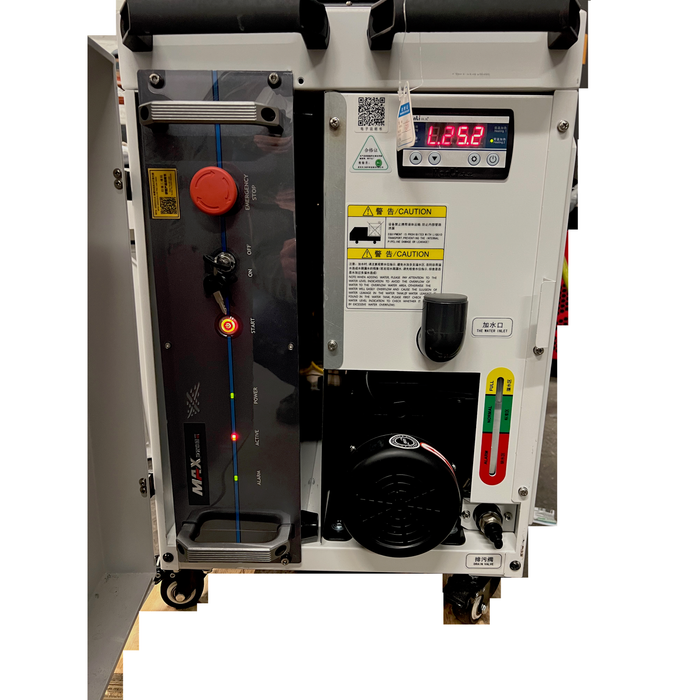

Usability. Compact design with built-in water chiller; standard power requirements (single phase 220V).
-
Free Maintenance. Long lifespan of the laser source; no consumables needed.
-

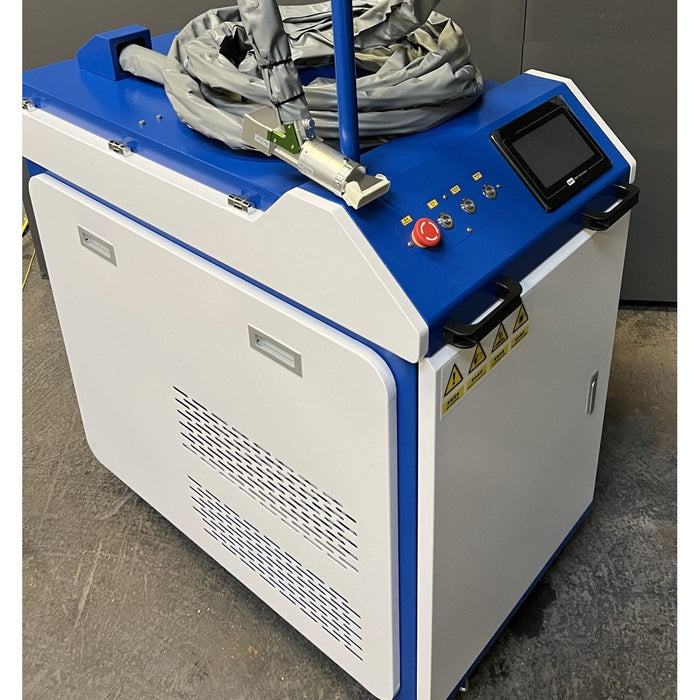

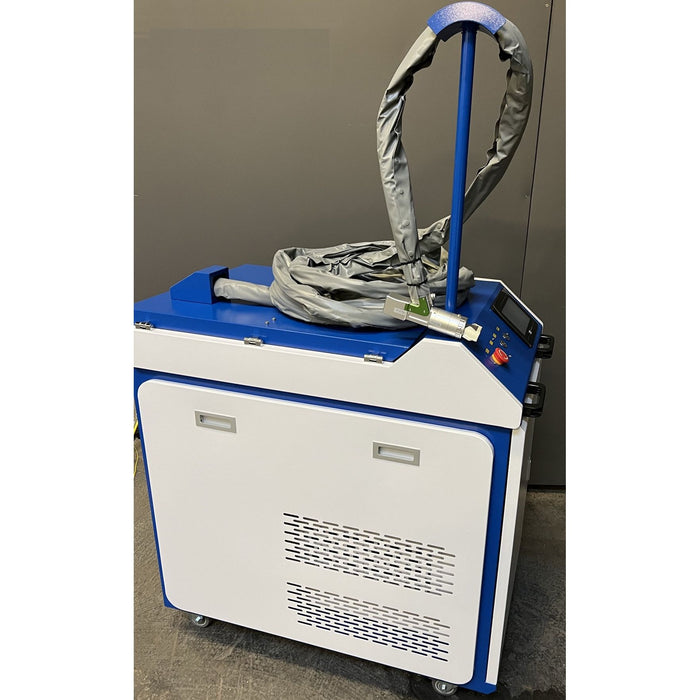

Portability. 33 feet long fiber optics cable and rolling cabinet for easy reach and effortless transportation.
-
Eco-Friendly. no hazardous cleaning agents or pollution.
- Versatile Applications. suitable for various industries such as aerospace, automotive, military, power generation, and more.
- Wide Range of Materials. Suitable for use on a wide range of metal & non-metal materials, including titanium alloys, aluminum alloys, high-temperature alloys, stainless steel, carbon steel, or semiconductor materials
Product Specifications
| Type | CW1500-FLC-SUP / CW2000-FLC-SUP / CW3000-FLC-SUP |
| Laser source | CW Fiber |
| Laser Power | 1500W / 2000W / 3000W |
| Fiber cable | 33 feet |
| Wavelength | 1080nm |
| Clean speed | ≤50M²/Hour |
| Beam width | Up to 300 mm |
| Scan speed | 0-7000mm/s |
| Cooling | Water Cooling |
| Voltage | Single Phase 220V |
Laser Specifications
| Brand | Raycus | |
| Models | RFL-C1500-CE / RFL-C2000S-CE / RFL-C3000S-CE | |
| Nominal Power | W | 1500 / 2000 / 3000 |
| Mode of Operation | CW/Modulated | |
| Polarization | Random | |
| Power Tunability | % | 10 to 100 |
| Wavelength | nm | 1080 ± 5 |
| Output Power Instability | % | ±1.5 |
| Laser Beam Quality | M2 <1.5 | |
| Modulation Frequency | kHz | 20 |
| Preview Red Light Power | mW | 0.1~1 |
| Interface | QBH (LOC) | |
| Output Fiber Length | m | 20 (customizable) |
| Output Fiber Core Diameter | μm | 50 (customizable) |
| Control Mode | RS-232/AD/Super Terminal/Ethernet | |
| Bending Working Radius | mm | < 300 |
| Input power | VAC | 220-240, Single Phase |
| Operating Temperature | °C | 10 to +40 |
| Storage Temperature | °C | -10 to +60 |
| Humidity | % | <70 |
| Cooling Method | Water Cooling | |
| Dimension | mm | 410*586*150 |
| Weight | kg | <40 |

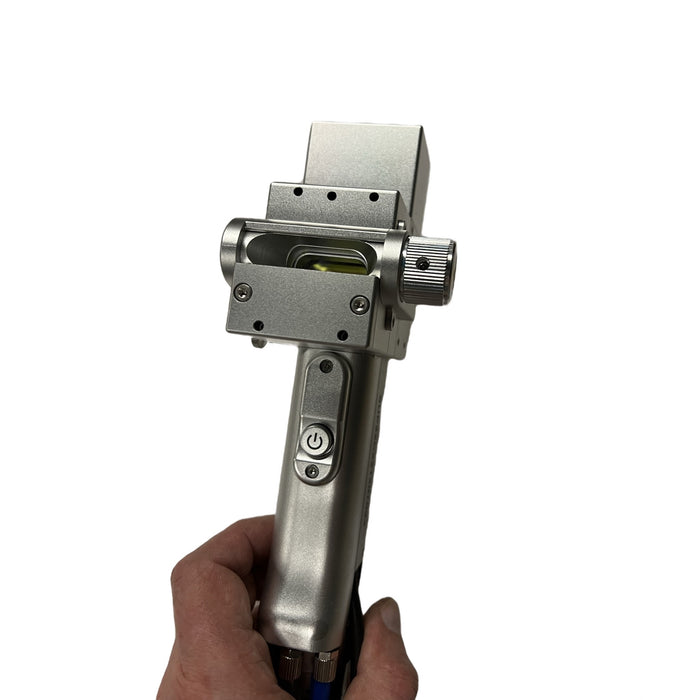

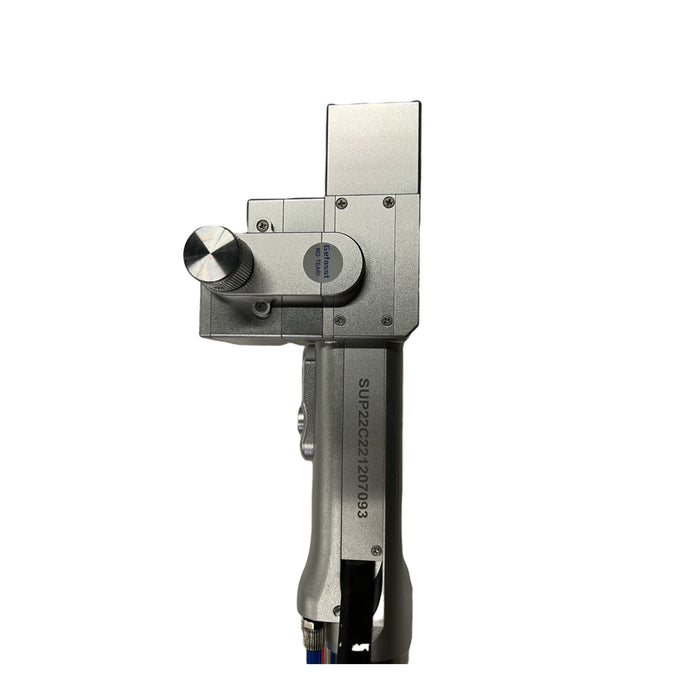

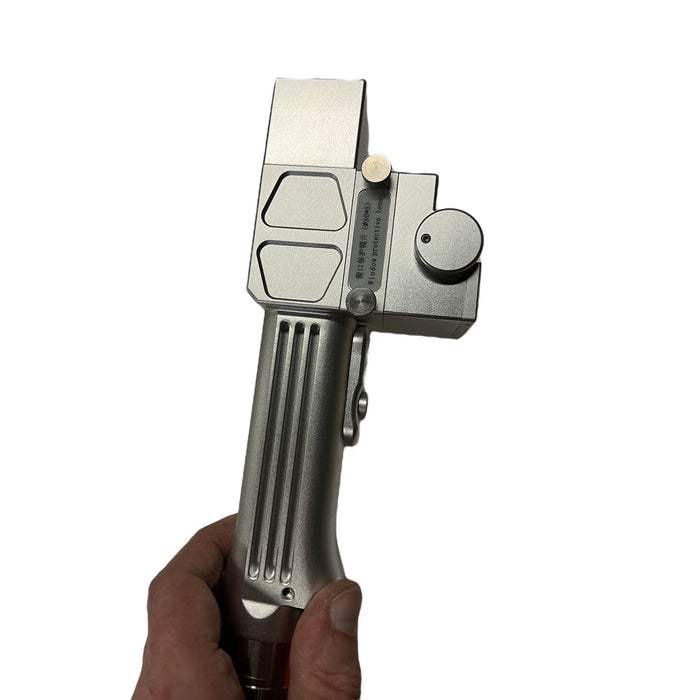

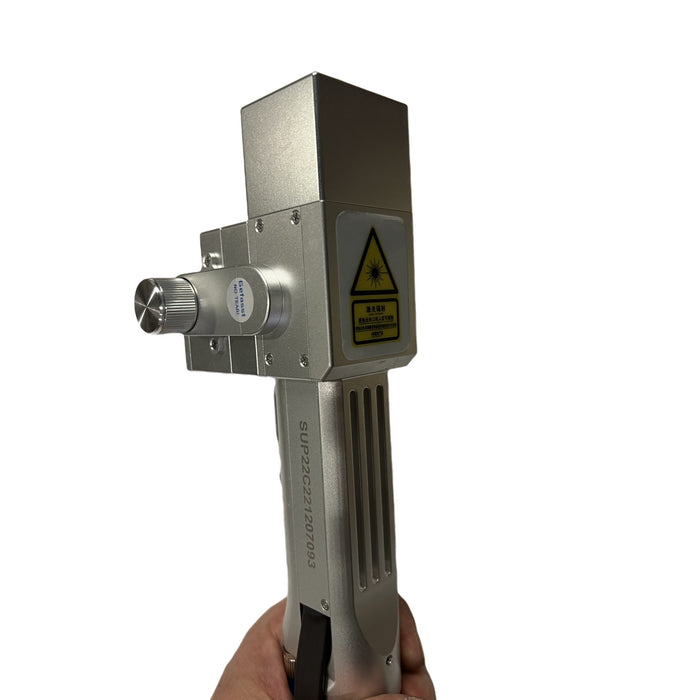

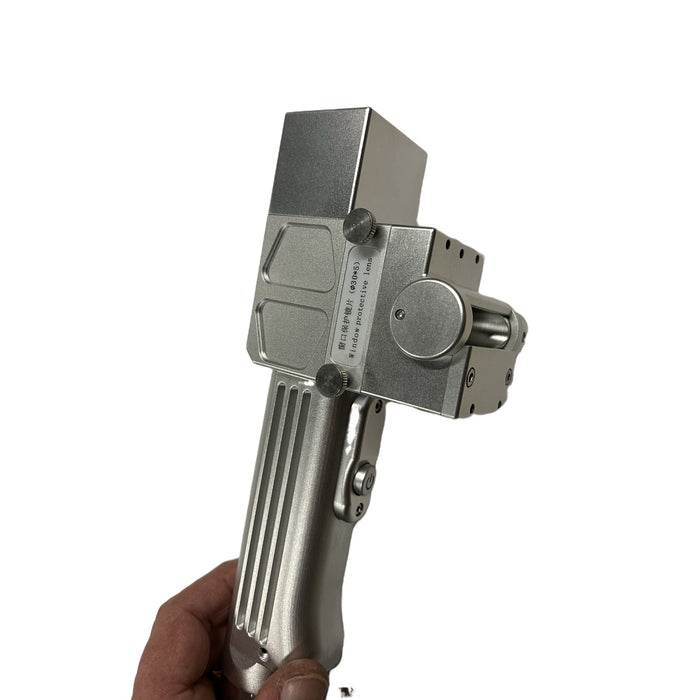

Controller & Laser Gun
| Brand | SUP |
| Model | SUP22C |
| Supply Voltage, V | 220+10%V AC 50 / 60 Hz |
| Placement Environment | Flat, No Vibration, and Impact |
| Working Temperature, C | 10 - 40 |
| Applicable Wavelength | 1064nm (+10nm) |
| Applicable Power | < 3000W |
| Collimating Lens | D16*5 / F60 |
| Focusing Lens | D20*3.5 (F400 / F600 / F800) |
| Reflective Mirrors | 20*15.2*T1.6 |
| Protective Windows Specifications | D30*T5 |
| Maximum Support Pressure | 15 Bar |
