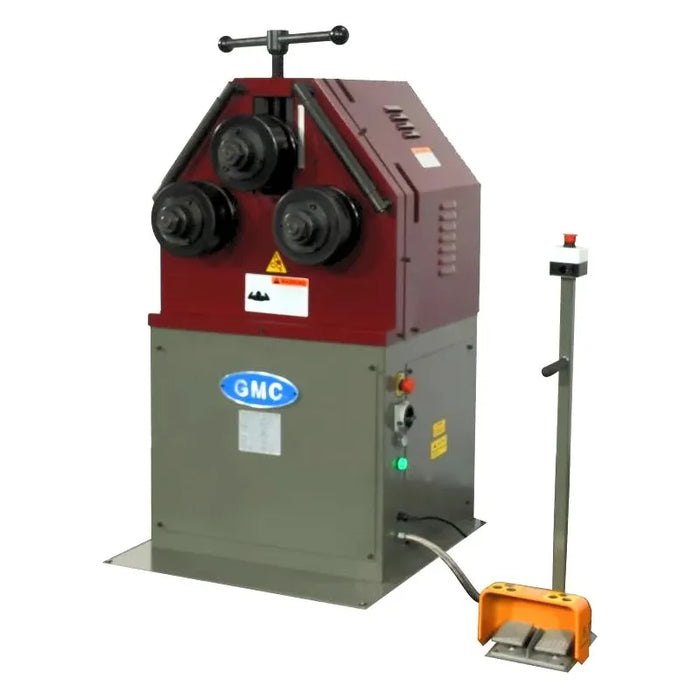

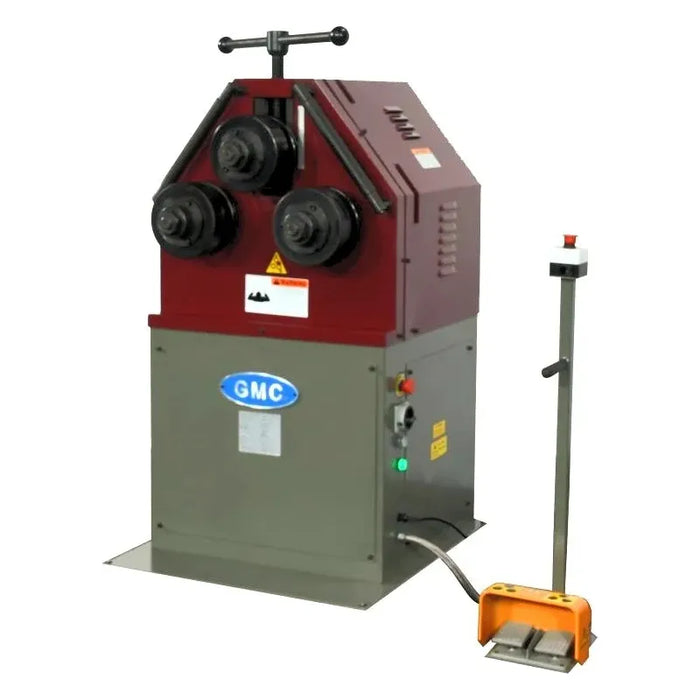

GMC Ring and Angle Roll Bender with Manual Positioning | Single Phase PRB-55-1PH

The GMC Ring and Angle Roll Bender PRB-55-1PH with manual positioning is a reliable tool for bending and rolling metal with precision. Designed for single-phase operation, it handles rings, angles, and other profiles with ease. Its sturdy construction and user-friendly manual adjustments make it ideal for small shops and custom metalworking projects.

Standard Features

• ISO 9001 certified

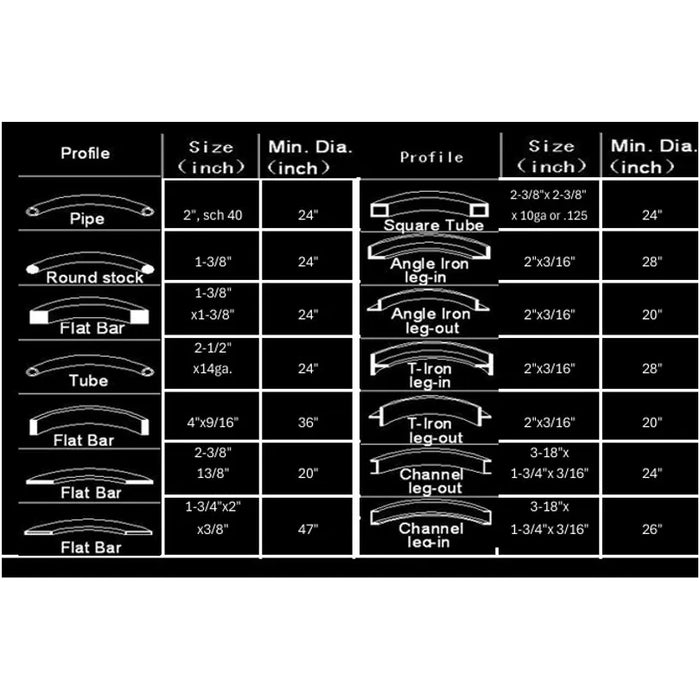

• 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
• Easy to operate in two positions; vertically and horizontally on its back
• DRO - Digitally displays your exact position and ensures repeatability
• Heavy Duty 4HP AC main motor

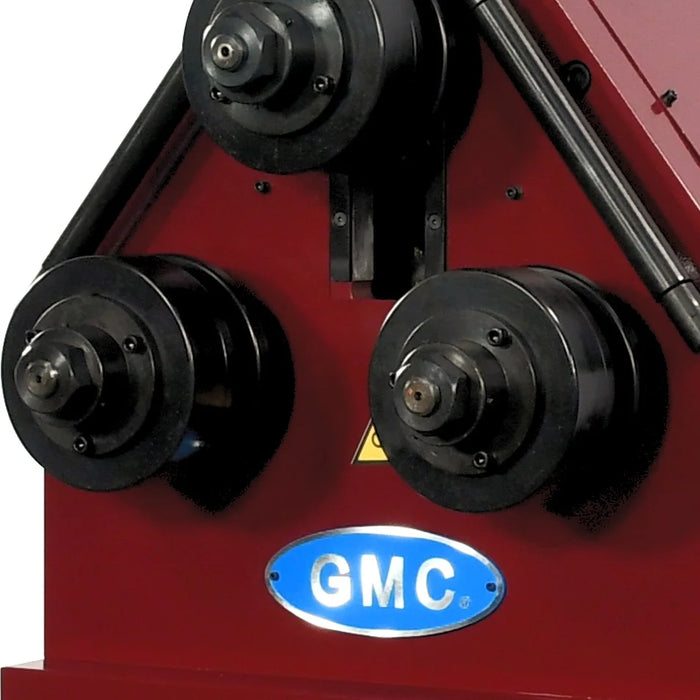

• 1 - Top forming roll (hydraulic driven)
• 2 - Driven bottom rolls
• Robust, all steel and welded framework
• Quiet, compact, hydraulic system that ensures precision and improves productivity
• Adjustable pressure control valve
• 1-year parts only warranty and lifetime tech support by video and phone

Standard Equipment

• Equipped with 1-set of universal forming rolls suitable for many applications One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)

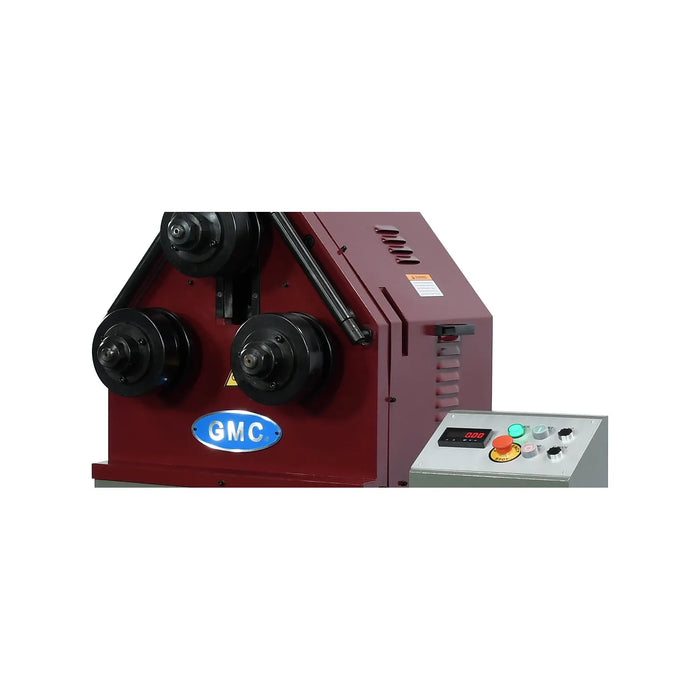

• Digital Readout (ensures repeatability and digitally displays your exact position)
• Left and right guide rollers (easily adjustable)
• Foot pedal (controls forward and reverse)
• Digital Readout (digital display)
• 4-metal support legs for horizontal position

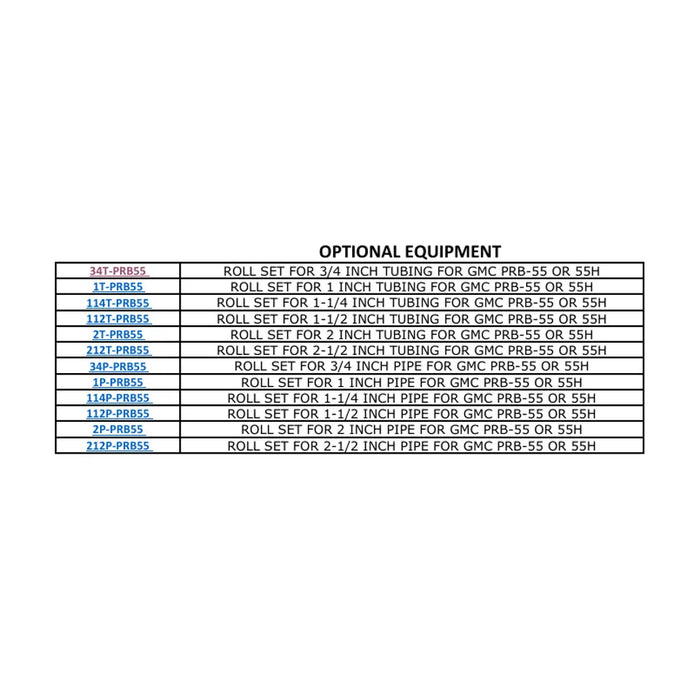

Optional Equipment

1. Optional roller sets for pipe & round tubing, any size, one set (3 rolls) - call for pricing
2. Optional anti-twisting attachment - call for pricing

Specifications
