GMC 50" x 14Ga. Slip Roll Machine PSR-5014E-1PH
SKU PSR-5014E-1PH
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$8,950.00
$8,950.00
-
$8,950.00
Current price
$8,950.00

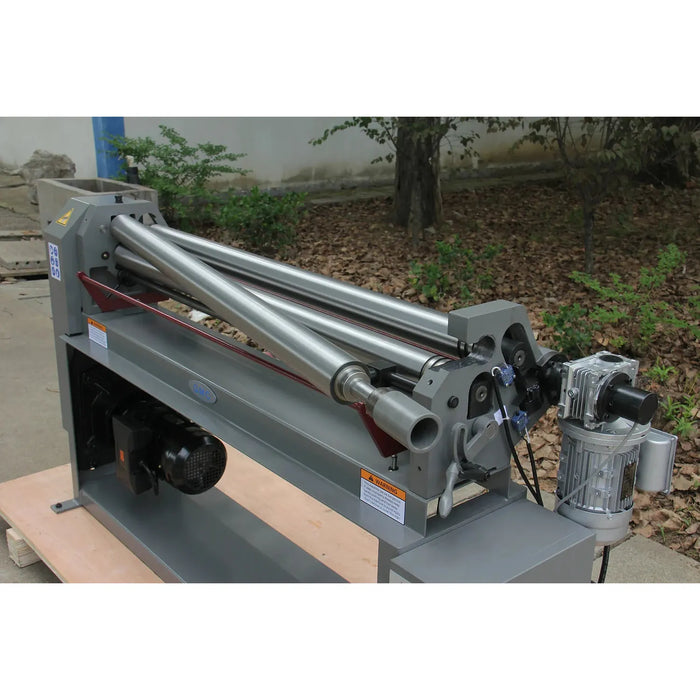

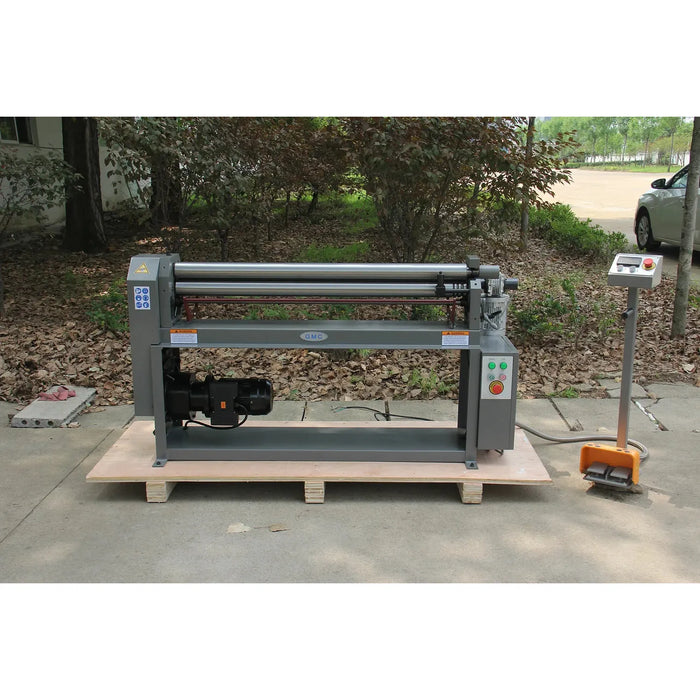

The GMC 50" x 14Ga. Slip Roll Machine PSR-5014E-1PH is a robust and efficient tool for rolling 14-gauge sheet metal up to 50 inches wide. Designed for single-phase operation, it allows for precise and smooth rolling of metal into cylinders and curves. Ideal for professional metalworking applications, this slip roll machine ensures consistent performance and durability for a wide range of fabrication tasks.
Standard Features
- ISO 9001 certified

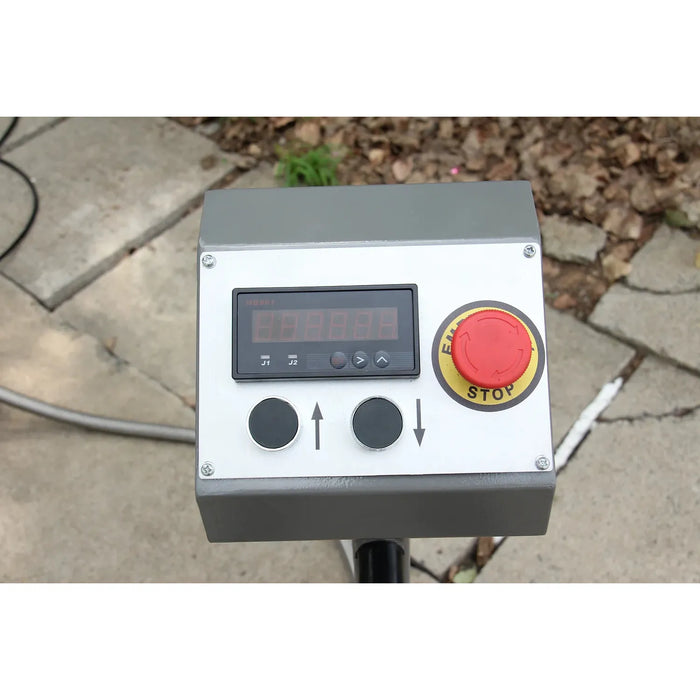

- Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts.
- One handle to control pinch roll up/down, more convenient and efficiency
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1/4” roll opening
- All three rolls are made of high grade alloy steel, hardened up to 50 HRC
- All rolls run forward and reverse
- Safety type removable foot pedal

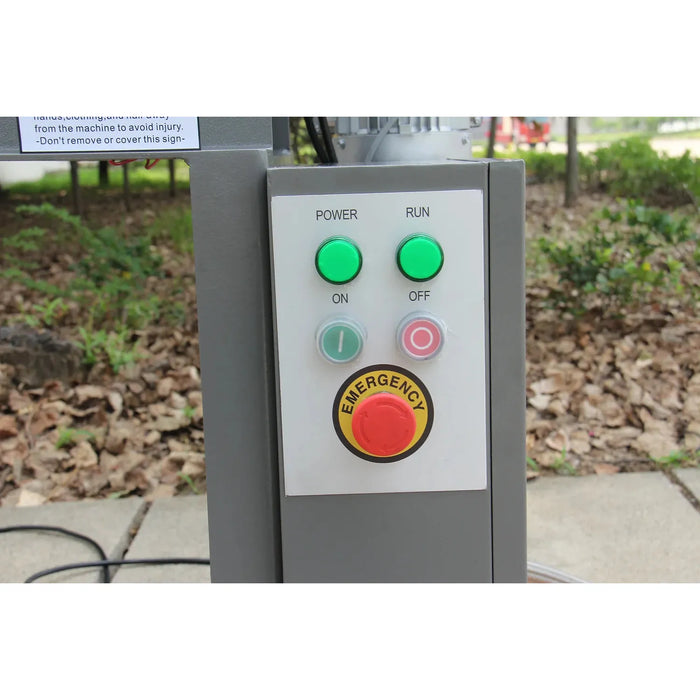

- Overload protection and disconnect switch
- One year warranty for parts
Standard Equipment
- Cone attachment
- Electrical cabinet
- Removable safety foot pedal
Specifications
|
Rolling capacity: Mild steel Stainless steel Soft aluminum Min. thickness capacity |
50"x14Ga. 50"x18Ga. 50” x 10Ga 50"x26Ga. |
|
Rolls size, length x dia Min. roll bending dia. capacity |
50”x 3” 3 1/2" |
| Rolls speed | 201” / min. |
| Rolls opening | ¼” |
| (3) grooves sizes | 5/16”, 3/8” , ½” |
| Main motor | 2 HP, 220V, 1ph |
| Net weight | 985 LBS |
|
Machine dimensions, LxWxH |
68x32x49” |
